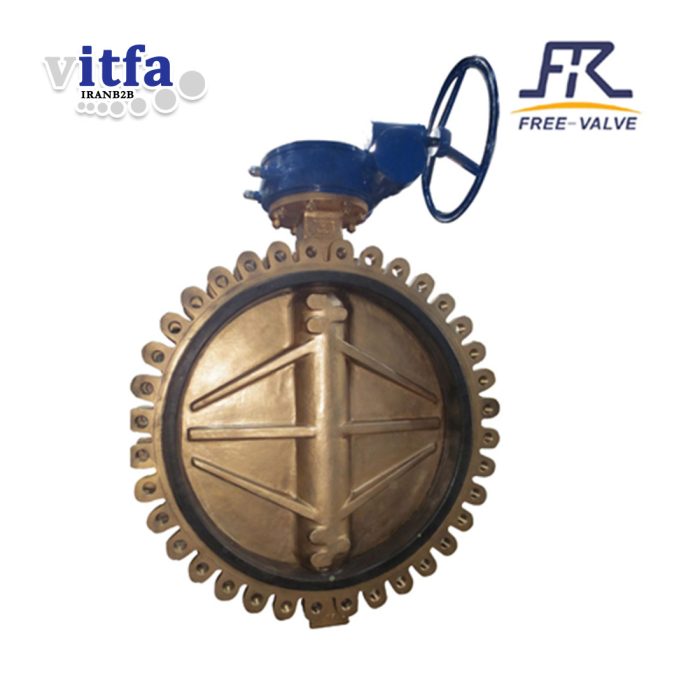

Centric Butterfly Valve
Valve’s Centric Butterfly Valve adopt center Lined principle to design, It uses the flexibility rubber seat, could easily achieve zero leakage and bi-directional sealing, It also can be used as regulation and shut-off device to deal with corrosive, non-corrosive gases, liquids in pipelines.
Description
Centric Butterfly Valve
Valve’s Centric Butterfly Valve adopt center Lined principle to design. Furthermore, it uses the flexibility rubber seat, could easily achieve zero leakage and bi-directional sealing. Its the other usage is also as regulation and shut-off device to deal with corrosive, non-corrosive gases, liquids in pipelines.
Features
1. Bi-Directional sealing, throttling Operation and shut-off function.
2. As well as, fully rubber lined body, with lined rubber extending up to the flange contact face,Resilient Seat.
3. The choice of disc and seat materials to suit working conditions and medium.
4. Also, with Self lubricated PTFE lined bearing designing ,life cycles up to ten thousand times cycles
Applicable
Valve’s Centric Butterfly Valve could easily achieve Bi-Directional sealing. Therefore is a widely applied valve in oilfield, agriculture, Power Plant Condensates Waterworks, Water treatment, Seawater, Exhaust, Flue Gas.
Finally, check out our website for the other product from this company by clicking here.
Additional information
| Size Range | NPS2~NPS64 |
|---|---|
| Pressure Range | PN6~PN16,Class150 |
| Body material | Carbon steel, stainless steel,copper alloy |
| Sealing material | Rubber or PTFE |
| Body type | Wafer Body Type, Lug Type or Flange Type |
| Working temperature | ≤120°C |
| Operating method | Worm gear,electric,pneumatic |
| Pressure test | GB/T13927; API598 |
| Face to Face | GB/T12221; API609, EN 558 |
