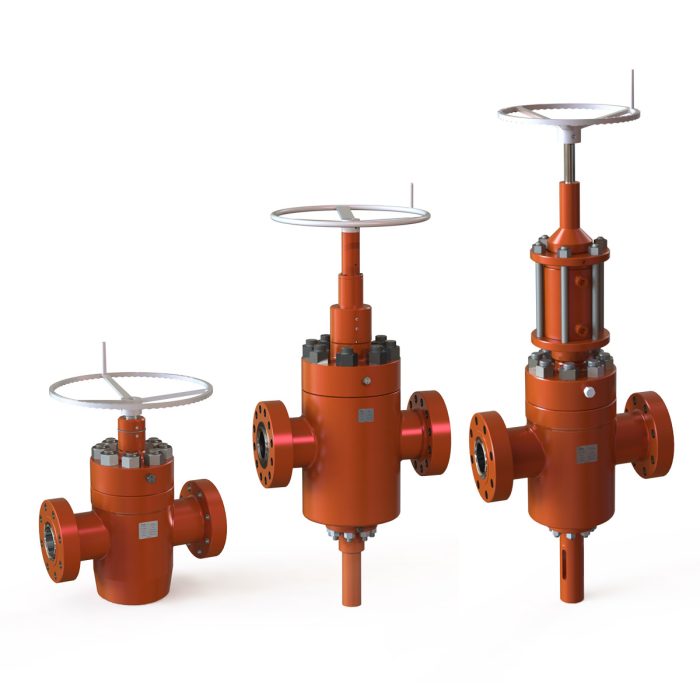

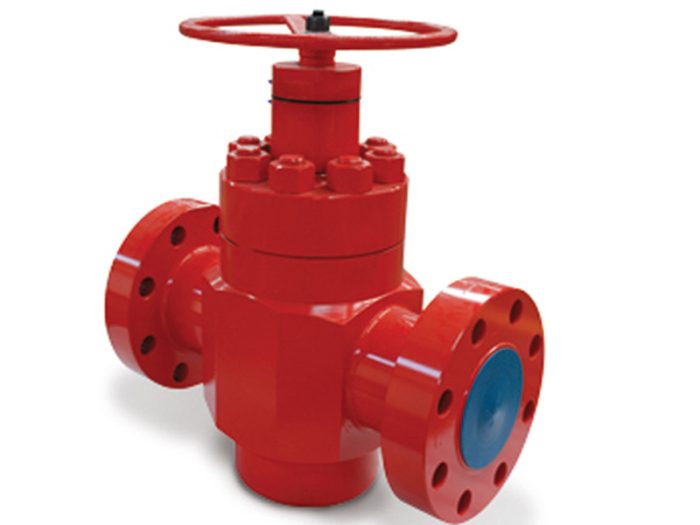

API 6A 3000- 7500 PSI wellhead equipment Mud Gate Valves for oil
$2,400.00
FC valveĀ
1. Full-bore design, effectively eliminate the pressure drop and eddy current, slow flow of solid particles in the valve.
2. The unique sealing, make the switch torque greatly reduced
3. Between bonnet & body and gate & seat are adopt metal to metal seal
4. Between gate and seat are adopt metal to metal seal, Surface spraying (heap) welding hard alloy , has good abrasion resistance, corrosion resistance.
5. Seat ring is fixed with plate, keep well steady
6. Stem has back seal structure so as to replace seal ring of stem with pressure
7. There is seal grease injection valve on bonnet side so as to repair seal grease , and provided seal and lubricate performance of gate and seat
8. It is match with all kind of pneumatic (hydraulic) actuator as customer’s requirements
Expanding gate valve
1. Gate is fission expanding structure
2. Realizing low torque or low wear during switch
3. Between bonnet and body are adopt metal to metal sealĀ
Features:
1.Sealing for Body and cover is metal to metal seal, improve the sealing performance.
2.stem and cover designed with backseat sealing structure is easy to take pressure change
valve stem packing.
3.The body is made of high quality alloy steel forgings, no perforation design, safe and reliable.
4.Sealing surface spray weld hard alloy, with corrosion resistance, resistance to erosion and wear resistance performance.
5.Body pad ring groove can according to user requirements overlaying austenitic stainless steel, improve the corrosion resistant ability; To enhance its service life.
6.Use spring preload load in the disc and seat, completely realize two-way seal.
Ā
Ā
Specifications:
Working pressure ļ¼2000PSIļ½20000PSI
Nominal bore ļ¼1.13/16″ļ½9″ (46mmļ½230mm)
Working medium : oi , nature gas , mud , consist of H2S CO2gasĀ
Working temp.ļ¼-46ā ~Ā 121ā (LU)
Materialļ¼AAćBBćCCćDDćEEćFFćHH
PSLļ¼PSL1ļ½4
PRļ¼PR1ļ½2
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoqueĀ dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisqueĀ vestibulum amet elit ut volutpat.
General Inquiries
There are no inquiries yet.
Related products
00:00 00:28 View larger image Add to Compare Share API 6A Oilfield Equipment Wellhead Casing /tubing Drilling Spool Casing/tubing Head Well Drilling Oil Field Forging
Tubing head is a spool with flange top, flanged bottom and two side outlets. It also can be called tubing spool. Top flange is equipped with lock screws to fix tubing hanger. Tubing head is installed on top of casing head, which consists of body housing and tubing hanger. It can hang tubing string and seal the annular space between tubing and production casing. Our company can manufacturer tubing head with standard structure, which includes tubing hanger installed on the cone of body housing. Tubing hanger can be tapped with BPV thread as per request.

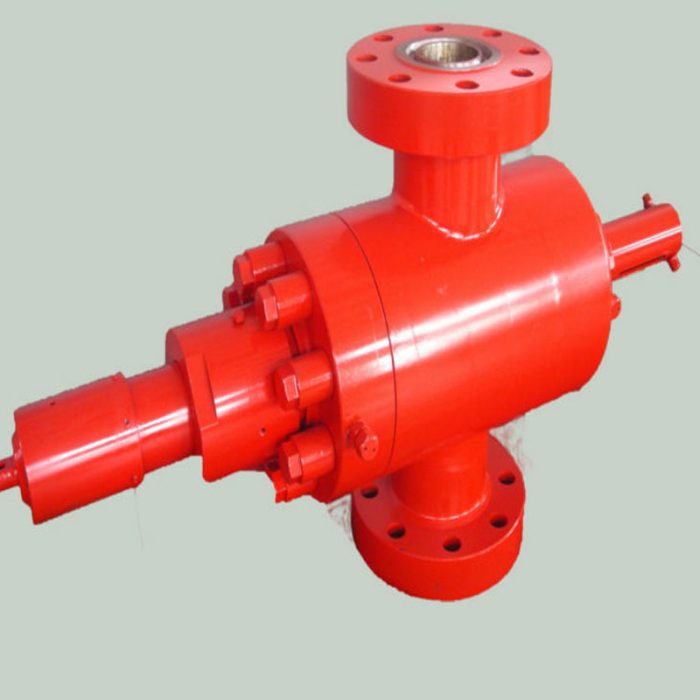

API 16A Double Ram Bop/Blowout Preventer
