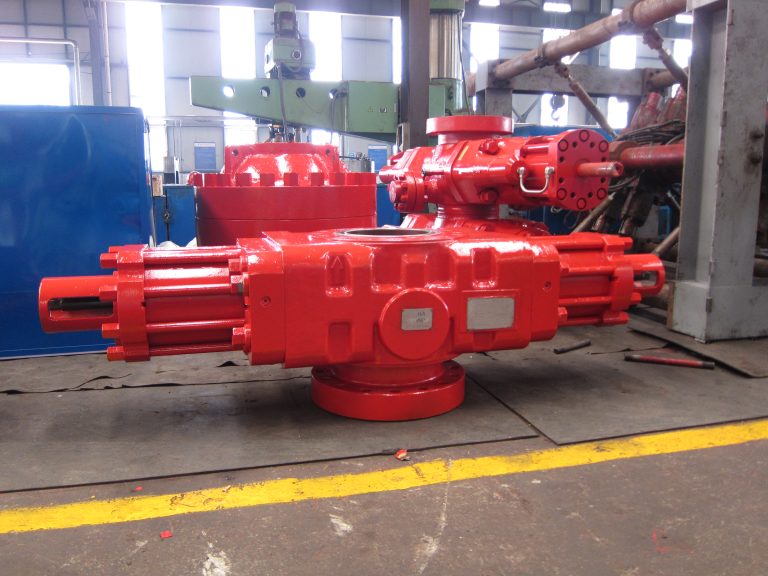

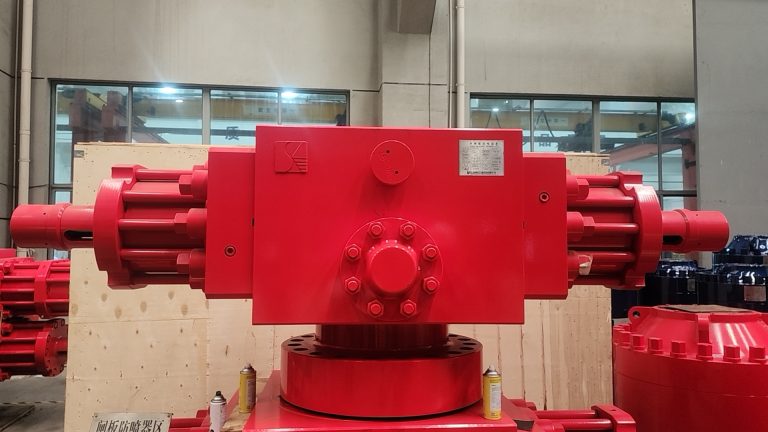

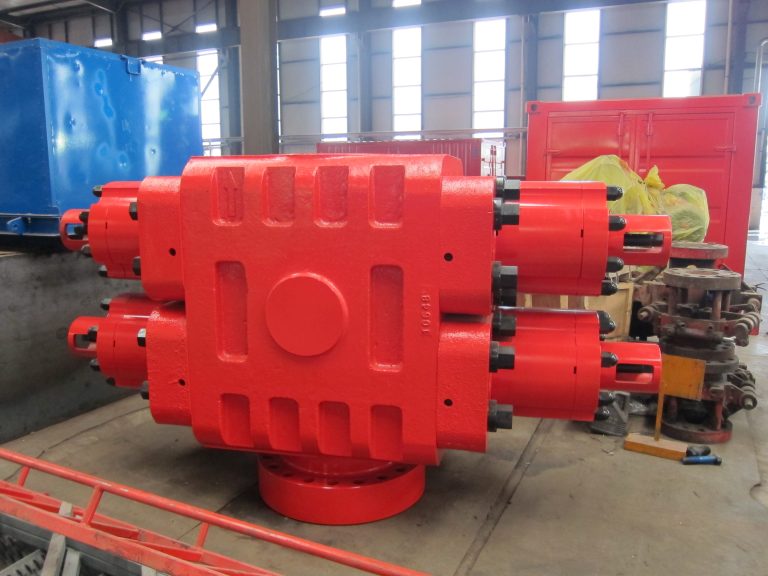

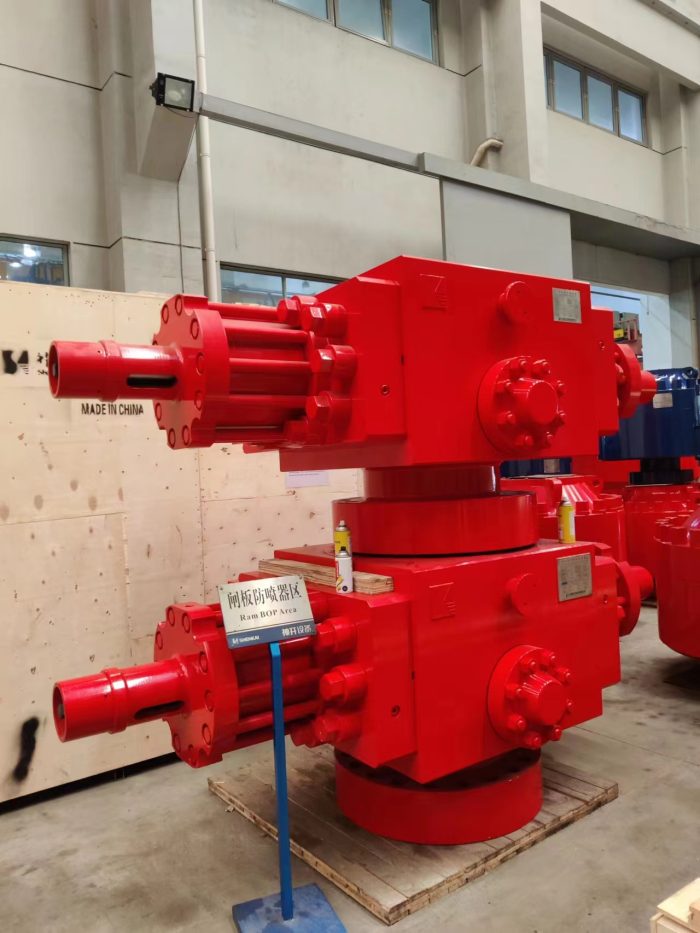

API 16A Double Ram Bop/Blowout Preventer
$20,000.00

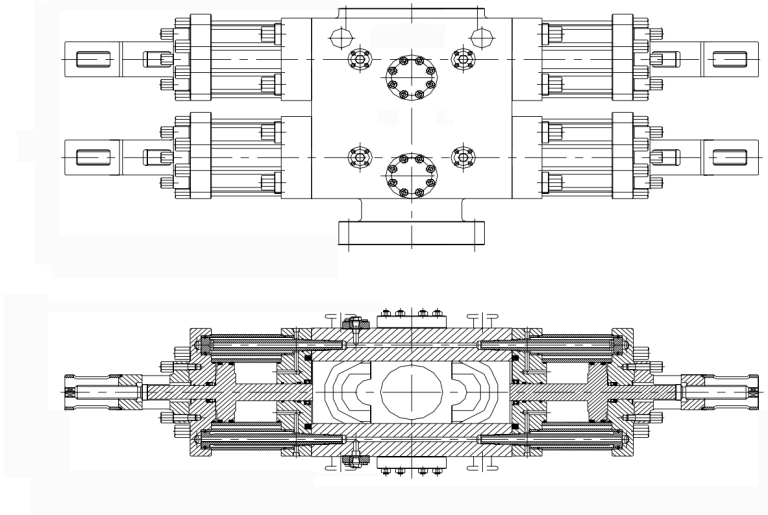

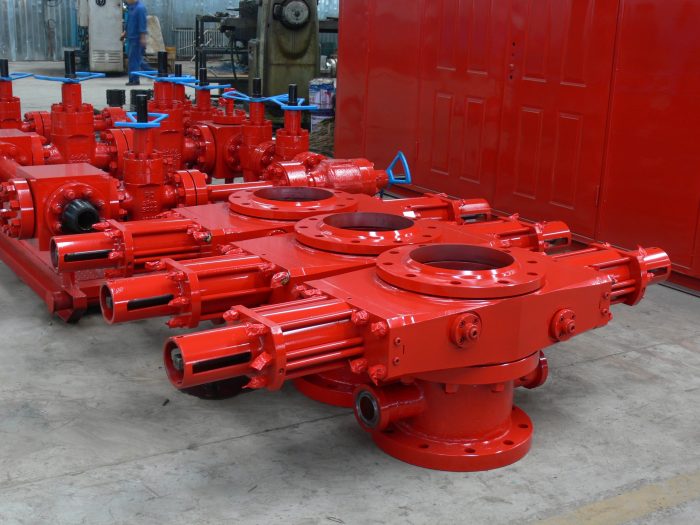

Ram type BOPs are field proven products that are designed for a variety of operations from workovers to high pressure, critical service operations for land drilling and subsea service. It consists of the BOP body, bonnet, hydraulic cylinder assembly, operating piston, ram change cylinder, ram opening/closing piston, locking screw, ram assembly, sealing parts etc. Top, bottom and outlet connection dimensions conform to Specification for Drilling through Equipment API Spec 16A.
Made up of the high-strength and high-tenacity alloy steel, the pressure-bearing parts (like BOP body, bonnet etc.) are formed through external refining and proper heat treatment, preventing the harmful chemical components and nonmetallic inclusion strictly from materials and ensuring BOP to be safe and reliable. The body ram chamber adopts the long runway to reduce stress concentration. Both the bonnet switch and ram switch are driven by the hydraulic pressure and adopts the same one oil line. The bonnet employs the same one oil line and operation to open and close the ram. Moreover, the bonnet employs the same one oil line and operation to close and open the ram.
Description
Features:
1. Main pressure-containing parts are cast with high-quality alloy steel, the material conform to NACE MR-01-75 specification, apply to the working condition of acid medium and specially heat treatment.
2. The BOP using the inner flow to avoid damaging the pipe during installing, transporting and operating
3. Door seal of the high pressure BOP uses combined seal, which has better seal from the well pressure
4. Ensure to seal well more safety and reliable, there is a manual-operated control system.
5. Top, bottom and outlet connection dimensions conform to Specification for Drilling Through Equipment API Spec 16A
Specifications of U type Ram BOP:
|
Model |
Main Bore |
Working pressure |
Oil quantity for opening L (Single Cylinder) |
Oil quantity for closing L (Single Cylinder) |
Ram Type |
Max.ram Size(in) |
Dimension (mm) |
Weight (kg) |
||||
|
length |
width |
height |
single |
double |
||||||||
|
single |
double |
|||||||||||
|
(2)FZ18-21 |
179.4(7–1/16) |
21(3000) |
1.6 |
2 |
H |
5–9/16 |
1420 |
645 |
568 |
854 |
855 |
1540 |
|
(2)FZ18-35 |
179.4(7–1/16) |
35(5000) |
1.6 |
2 |
H |
5–9/16 |
1420 |
645 |
624 |
910 |
895 |
1580 |
|
(2)FZ18-70 |
179.4(7–1/16) |
70(10000) |
2.2 |
2.5 |
H |
5–9/16 |
1720 |
640 |
897 |
1262 |
1660 |
3020 |
|
(2)FZ18-105 |
179.4(7–1/16) |
105(15000) |
7.4 |
8 |
H |
5–1/2 |
1988 |
820 |
922 |
1372 |
3175 |
5885 |
|
(2)FZ23-21 |
228.6(9) |
21(3000) |
1.3 |
1.5 |
HF |
7 |
1526 |
565 |
580 |
866 |
705 |
1250 |
|
(2)FZ23-35 |
228.6(9) |
35(5000) |
4.7 |
5.3 |
HF |
7 |
2036 |
720 |
805 |
1190 |
1830 |
3415 |
|
(2)FZ23-70 |
228.6(9) |
70(10000) |
7 |
8 |
H |
7 |
2324 |
850 |
1038 |
1518 |
3635 |
6835 |
|
(2)FZ23-105 |
228.6(9) |
105(15000) |
10.2 |
10.9 |
HF |
7 |
2170 |
920 |
1140 |
1640 |
4150 |
7500 |
|
(2)FZ28-21 |
279.4(11) |
21(3000) |
2.7 |
3.2 |
S |
8–5/8 |
1846 |
675 |
740 |
1100 |
1400 |
2550 |
|
(2)FZ28-35 |
279.4(11) |
35(5000) |
5.4 |
6.2 |
S |
8–5/8 |
2265 |
785 |
895 |
1325 |
2475 |
4550 |
|
(2)FZ28-70 |
279.4(11) |
70(10000) |
7 |
8 |
H |
8–5/8 |
2324 |
850 |
1102 |
1582 |
3770 |
6850 |
|
(2)FZ28-105 |
279.4(11) |
105(15000) |
14.6 |
16.7 |
H |
8–5/8 |
2650 |
1050 |
1244 |
1784 |
6303 |
11028 |
|
(2)FZ35-21 |
346.1(13–5/8) |
21(3000) |
7.8 |
8.9 |
S |
10–3/4 |
2414 |
760 |
774 |
1164 |
2705 |
5115 |
|
(2)FZ35-35 |
346.1(13–5/8) |
35(5000) |
7.9 |
9.3 |
S |
10–3/4 |
2415 |
847 |
930 |
1370 |
3010 |
5480 |
|
(2)FZ35-70 |
346.1(13–5/8) |
70(10000) |
18 |
20.7 |
HF |
10–3/4 |
2786 |
1085 |
1276 |
1782 |
6120 |
11135 |
|
(2)FZ35-105 |
346.1(13–5/8) |
105(15000) |
17.4 |
20 |
H |
10–3/4 |
3074 |
1140 |
1420 |
1985 |
8945 |
16070 |
|
(2)FZ43-35 |
425.5(16–3/4) |
35(5000) |
10.3 |
11.6 |
HF |
10–3/4 |
2923 |
1190 |
1090 |
1570 |
5300 |
9860 |
|
(2)FZ48-35 |
476.3(18–3/4) |
35(5000) |
24.5 |
27.9 |
HF |
16 |
3430 |
1440 |
1504 |
2072 |
9758 |
12286 |
|
(2)FZ48-70 |
476.3(18–3/4) |
70(10000) |
24.5 |
27.9 |
HF |
16 |
3430 |
1440 |
1618 |
2186 |
10312 |
20624 |
|
(2)FZ53-21 |
527.1(20–3/4) |
21(3000) |
12.2 |
13.6 |
HF |
16 |
3424 |
1165 |
1065 |
1650 |
6130 |
13355 |
|
(2)FZ54-14 |
539.8(21–1/4) |
14(2000) |
12.1 |
13.8 |
HF |
16 |
3300 |
1130 |
940 |
1480 |
5560 |
10200 |
|
(2)FZ54-35 |
539.8(21–1/4) |
35(5000) |
26 |
29.6 |
HF |
16 |
3590 |
1445 |
1320 |
1950 |
9270 |
17670 |
|
(2)FZ68-21 |
679.5(26–3/4) |
21(3000) |
32.6 |
37 |
HF |
18–5/8 |
4350 |
1450 |
1250 |
1870 |
12360 |
20290 |
