Smart Integrated Bird Repeller-Intelligent bird-repelling device for substations
Product Name:Smart Integrated Bird Repeller
Product Model:TLKS-PUW-Ⅲ
Product Note:Recommended New Product – Smart Integrated Bird Repeller
Product Category:Bird Deterrent Device Series
I. Product Overview

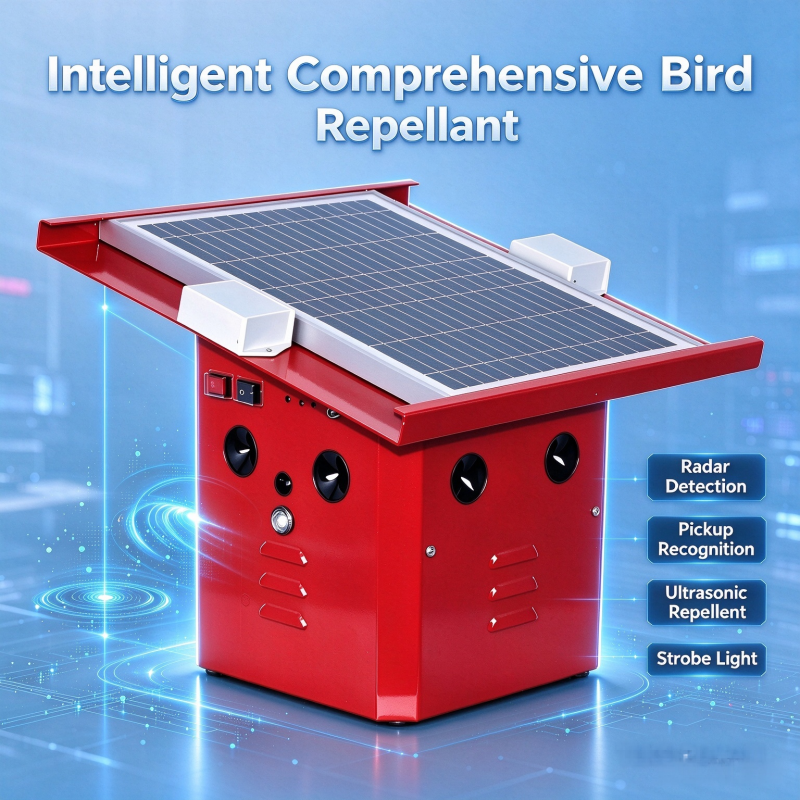

The Smart Integrated Bird Repeller actively detects approaching birds via radar and sound sensors, and then uses ultrasonic waves, simulated bird calls, and intense strobe flashes to startle birds and disrupt their nervous and visual systems, thereby achieving comprehensive bird deterrence. Designed with an imported microcontroller chip, it is a timercontrolled, selfoperating intelligent bird repelling device that integrates radar detection, ultrasound, voice simulation, and intense strobe light technologies.
II. Features
◆ Uses intelligent microcomputer chip technology with low voltage, low power consumption, and high processing capability;
◆ A rocker switch and a highbrightness LED are mounted in the recessed underside of the device;
◆ The switch design prevents accidental activation during transportation and installation;
◆ The LED allows patrol personnel to easily check the operating status of the repeller;
◆ Can be installed without power outage; flexible installation locations; easy to disassemble;
◆ Operates reliably at low temperatures;
◆ When installed on transmission tower bases, it resists electromagnetic interference and has strong EMC performance;
◆ Includes lightning protection design;
◆ Waterproof and corrosionresistant design.
III. Precautions
◆ Avoid dropping the device onto the ground or subjecting it to strong impacts from other objects;
◆ Protect the solar panel from severe impacts that could damage it;
◆ During installation, face the solar panel toward the sunlight as much as possible;
◆ Turn off the power switch before installation, and turn it on again after installation is complete;
◆ Do not disassemble the structure or circuit board without authorisation – unauthorised disassembly will void the warranty.
IV. Technical Parameters
|
Model |
|
TLKS-PUW-III |
|
Technical Specifications |
Power supply |
12V 4Ah battery, 16V 10W solar panel |
|
Detection devices |
2 bird detectors, 2 sound detectors |
|
|
Voice speakers |
4 |
|
|
Ultrasonic speakers |
8 |
|
|
LED strobe lights |
2 |
|
|
Radar detection range |
60°, 7±1 m |
|
|
Sound detection range |
360° |
|
|
Ultrasonic frequency |
17~25 kHz |
|
|
Sound intensity |
>110 dB |
|
|
Highfidelity gunshot |
100±5 dB |
|
|
Highfidelity eagle call |
100±50B* |
|
|
Bird repelling radius |
<15 m |
|
|
Average power consumption |
≤0.5 W |
|
|
Operating humidity |
095% (noncondensing) |
*Note: The original specification states “100±50B” for the eagle call; this value is retained as given.
