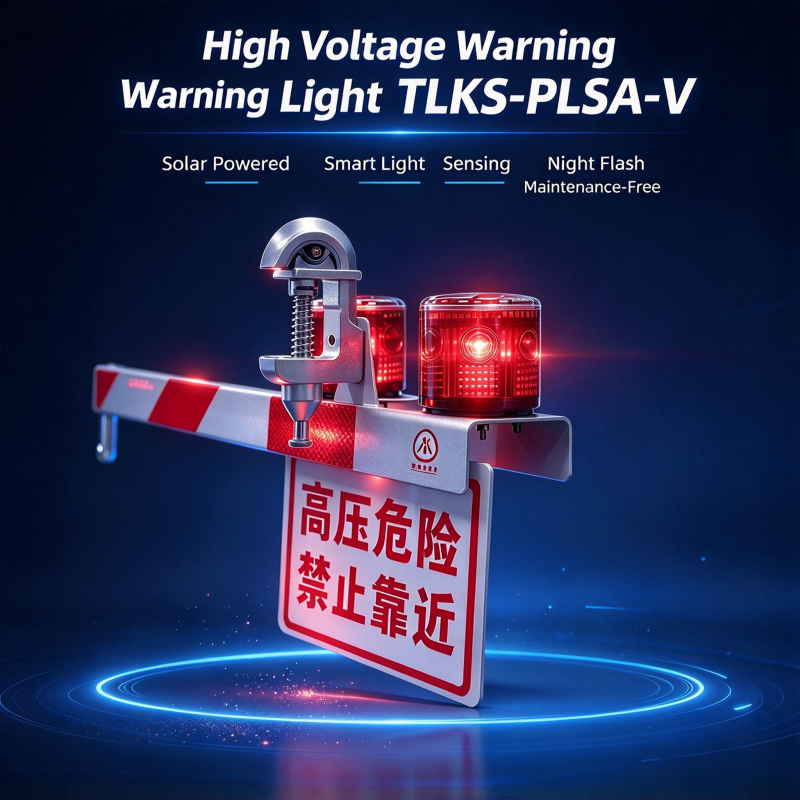

High – Voltage Warning Light
High – Voltage Warning Light
TLKS – PLSA – V
1.Product Functions
l Powered by solar panels and polymer lithium batteries.
l LED lights are used as light sources, featuring high brightness, strong penetration, and long service life.
l Built – in blue – light chips can turn on and off LED lights according to ambient brightness.
l The structure is made of special materials, resistant to high temperature, ultraviolet rays, aging, and has a long service life.
l It can be installed with electricity on, and no maintenance is needed after installation.
2.Product Overview
In recent years, with the development of science and technology, electricity has become an indispensable part of our life and production. High – voltage overhead transmission lines are spread all over cities and villages, crossing roads and bridges, which often cause vicious accidents at night because pedestrians and vehicles passing by are not prepared enough. Although “High – voltage Danger” warning signs can be seen everywhere, the current warning signs work well during the day but fail to play a warning role at night. The high – voltage warning light is a prominent identification product specially installed on high – voltage overhead transmission lines to warn of high voltage during the day and night, so as to avoid electric shock accidents.
3.Working Principle
The high – voltage warning light is installed on the high – voltage overhead transmission line to warn of high voltage during the day and night. During the day, it mainly relies on the warning sign to play a warning role. At night, the device will turn on the LED light to flash. In addition, the warning sign is equipped with reflective materials, which can play a good warning role. The high – voltage warning light consists of five parts: high – brightness LED light source, microcontroller, solar panel, lithium polymer battery and reflective material. The LED light source uses special light – emitting devices, which have the characteristics of high brightness, strong penetration and long service life. Moreover, the warning light does not stay on all the time, but flashes alternately at a frequency most sensitive to human eyes, making it easier and earlier for people to find, so as to avoid danger.

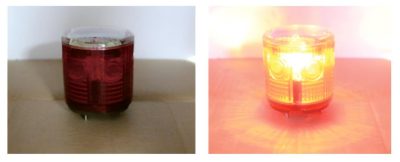

4.Flashing Effect
Non – flashing Flashing
5.Technical Parameters
l Operating voltage: 10KV – 500KV
l Ambient temperature: – 40℃ – 80℃
l Ambient humidity: 0 – 100%
l Display mode: High – brightness LED flashing
l Power supply technology: Solar panel power generation
l LED light (single): 3.0v/20mA
l Visible range of light source: 0 – 100m
l Wire diameter for fixture installation: 10mm – 100mm, can be customized according to user requirements
