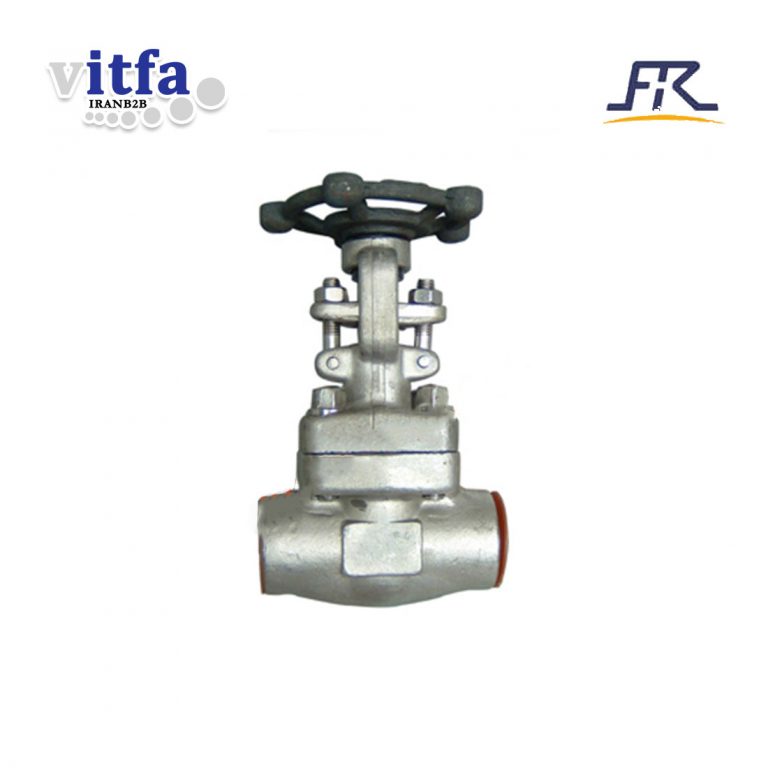

Forged Stainless Steel Globe valve Class 800 Socket Welded
Forged Stainless Steel Globe valve Class 800 Socket Welded
FREE-Valveās Class 800 Socket Welded Forged Stainless Steel Globe valve is compact, sturdy and ideal for high pressure and high temperature applications and consist of a disc and stem connection designed for regulated flow or on/off. Stem seal consists of flexible graphite packing with anti extrusion rings for optimum stem sealing. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.
Features of Forged Stainless Steel Globe valve Class 800 Socket Welded
1.Efficient packing seal at backseat to ensure no leakage from stem.
2.Outside Screw & Yoke construction facilitate stuffing box maintenance.
3.Metallic ring gasket or spiral wound gasket can be applied to ensure the tight seal of body/bonnet joint.
4.Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.
Application
FREE-Valveās Class 800 Socket Welded Forged Stainless Steel Globe valves offer high performance, reliability and safety. The Globe Valve are especially suitable for high pressure and high temperature application in steam, oil and gas processing, power industries, in chemical and petrochemical industries.
| Socket weld end/Screwed end |
ANSI B16.11/ANSI B1.20.1 |
|---|---|
| Design standard |
API 602, ASME B16.34 |
| Pressure Range |
150LB to 2500LB |
| Size Range |
1/4" to 3" |
| Material Forged |
Carbon, Stainless or Alloy Steel Materials |
| Connection type |
Socket weld end/Screwed en |
| Working Temperature |
ā¤500Ā°C |
| Operating Type |
Handwheel |
| Sealing surface material |
Alloy |
| Pressure test |
GB/T13927, API598 |
| Face to Face |
ASME B16.10 |
