Through Conduit Knife Gate Valve

Through Conduit Knife Gate Valves are known as slurry gate valves. Its are bi directional wafer knife gate valve. It is mainly designed for highly concentrated flow media.

  Ask a Question

Description

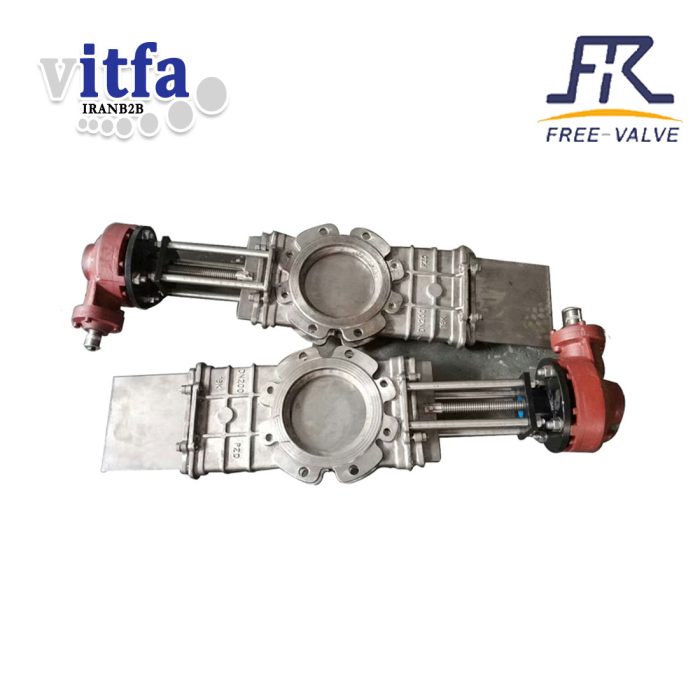

Through Conduit Knife Gate Valve

Through Conduit Knife Gate Valve is known as slurry gate valves. Its main design is for highly concentrat flow media. With a through going port plate, through conduit knife gate valves provide a stable and safe shut-off performance without clogging. With double-seat design, it can control flow in both directions.

Features:

1.Two way sealing with two seal rings on the valve seat,this gate is longer and the bottom extends out of the valve body and requires two packing glands. The gate disc is on the ground smoothly on both sides to eliminate adhesion and clogging.
2.The gate disc forms a port plate whose role is that when the gate opens, medium may flow away completely without any detention, when the gate closes, it may be completely sealed. It can easily cut through the media during on-off operation.
3.When the media are of high concentration, it may also keep the valve seat sealed,as there is no detention area,the bottom of the gate without medium accumulation.

Technical Specification:

Check the next table, additional information

Application:

Through Conduit Knife Gate Valves are suitable for the loading and unloading of sugar-making and chemical equipment(dryer and reactor). Also, the outlet of sizing agent in paper industry. Its usage may also is for the recycling of old paper mingled with a large amount of impurities.



**Also, you can check the other relevant products by clicking here**

Additional information

Size Range

NPS2~NPS48,DN50~DN1200

Pressure Range

Class 150 /PN6 /PN10

Applicable Temperature

0~425℃

Connection Type

wafer

Sealing material

Rubber,PTFE,stainless steel +STL

Body Material

Carbon steel,stainless steel

Disc material

Stainless steel

Pressure test

GB/T13927, API598

Face to Face

GB/T12221, API609

Valve body

GB/T12224,ASME B16.34

Operating Mode

Hand wheel,Bevel Gear,Pneumatic,Electric,Hydraulic
