Screw foot valve

Screw foot valve is a kind of energy saving valve, usually installed at the bottom of the suction pipe of pump. The functions of foot valve are designed to stop water from going backwards when the pump shuts off and only allow the water flow forward .

  Ask a Question

Description

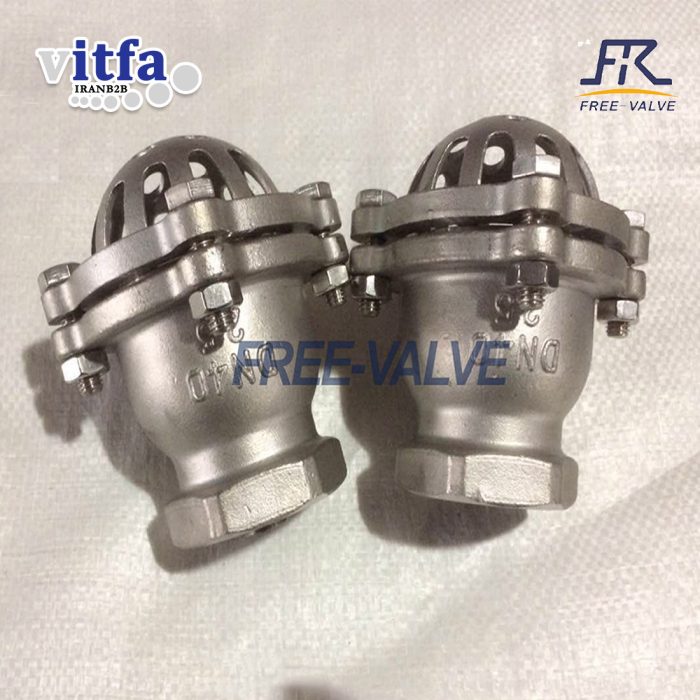

Screw foot valve

Screw foot valve is a kind of energy saving valve, usually installed at the bottom of the suction pipe of pump. The functions of foot valve are designed to stop water from going backwards when the pump shuts off and only allow the water flow forward . As many inlet and stiffeners are designed on the valve bonnet , the valve is not easy to clog . Also, the foot valve is usually applied at suction pipe . The valve disc usually designed as signal disc ,and connection method is flange .

Features

1.Screw foot valve is composed of valve body, disc, cover,strainer basket, sealing ring and other parts.
2. As well as, the disc is going to move up and down under fluid pressure drop between inlet and outlet to realize the valve opening and closing. The valve opens under the pressure of the fluid.
3.When the pump stops working, the valve will be shut off quickly under pressure of outlet pipe , and the liquid will not flow back to the water source, which will help the water suction pump and save water loss.
4.Also, flow area is 2 to 3 times of the pipe area about stainless steel or carbon steel strainer basket.

Technical Specification:

Also, check the next table, additional information.

Application:

Screw foot valve is designed for using in irrigation as well as other pumping applications where water may be dirty due to suspended silt and sand. It offers extremely low head loss. . Ports are female screw for easy installation.



**Also, you can check the other relevant products by clicking here**

Additional information

Size Range

NPS2~NPS8,DN50~DN200

Applicable Temperature

0~300℃

Connection Type

screw

Sealing material

soft sealing or hardness sealing

Material of main parts

WCB,stainless steel

Test standard

GB/T13927,API598
