Supplying best grades of Iran Bitumen

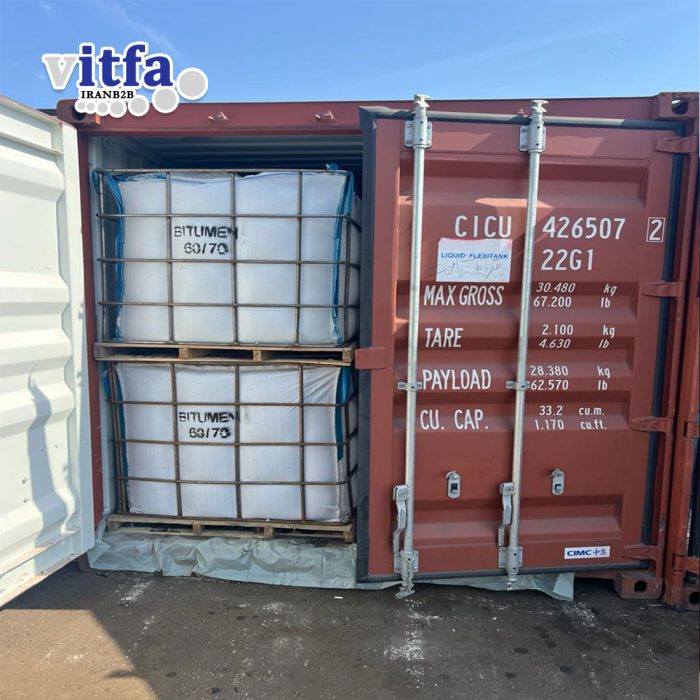

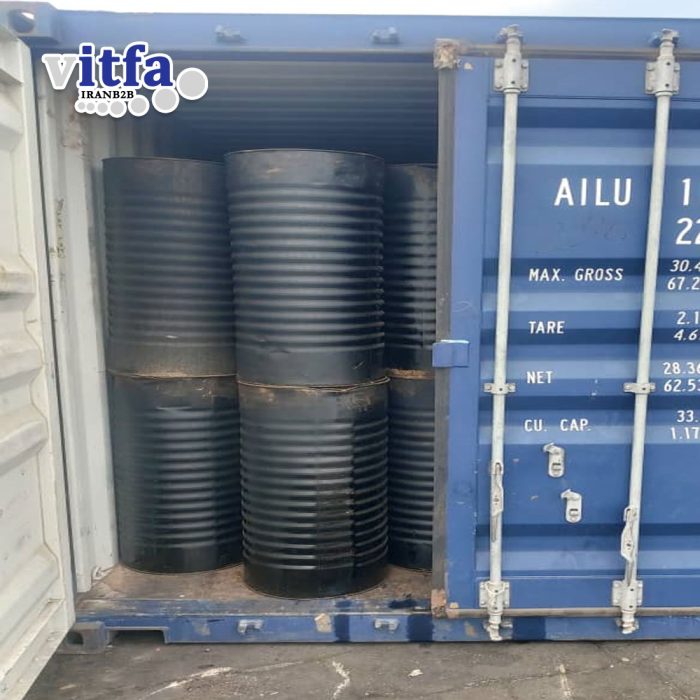

Jumbo, Drums and bulk

Supply fast and safe

For best price:+989105425294

  Ask a Question

Description

Iran Bitumen

Iran supply bitumen with high-quality and competitive price , and there is lots of factories that we can supply your need in analysis package and brand you are looking for .

Vitfa Bitumen Variety:

Penetration Grade Bitumen

This is the most commonly used type of bitumen. It is classified based on the penetration value which represents the hardness or softness of the material.

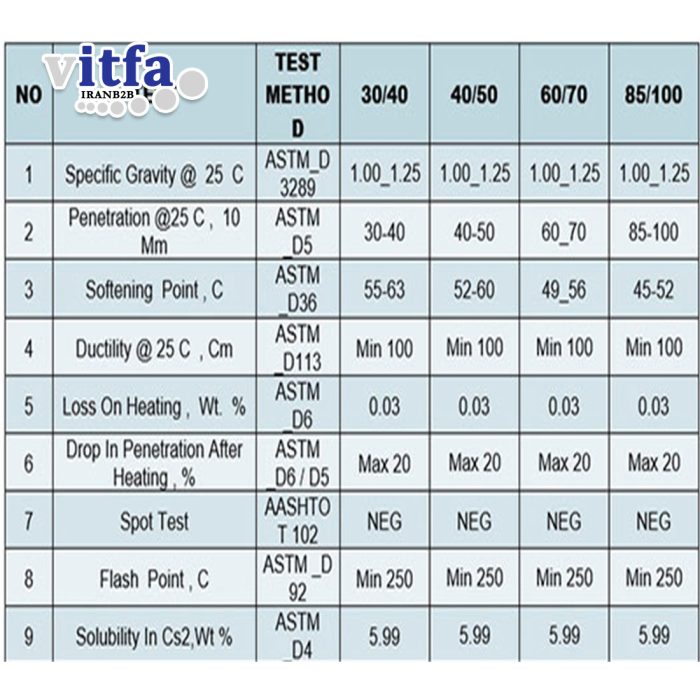

Analysis of Penetration Grade Bitumen:

NO TEST TEST METHOD 30/40 40/50 60/70 85/100
1 Specific Gravity @  25  C ASTM_D3289 1.00_1.25 1.00_1.25 1.00_1.25 1.00_1.25
2 Penetration @25 C ,  10 Mm ASTM _D5 30-40 40-50 60_70 85-100
3 Softening  Point , C ASTM _D36 55-63 52-60 49_56 45-52
4 Ductility @ 25 C  , Cm ASTM _D113 Min 100 Min 100 Min 100 Min 100
5 Loss On Heating ,  Wt  % ASTM _D6 0.03 0.03 0.03 0.03
6 Drop In Penetration After Heating , % ASTM _D6 / D5 Max 20 Max 20 Max 20 Max 20
7 Spot Test AASHTO T 102 NEG NEG NEG NEG
8 Flash  Point , C ASTM _D 92 Min 250 Min 250 Min 250 Min 250
9 Solubility In Cs2,Wt % ASTM _D4 5.99 5.99 5.99 5.99

VG Iran Bitumen

VG bitumen is a type of bitumen use in road construction, with “VG” standing for viscosity grade. It is classified based on its thickness and used in asphalt mixes for paving roads and runways. It is produce from crude oil through distillation and refining.

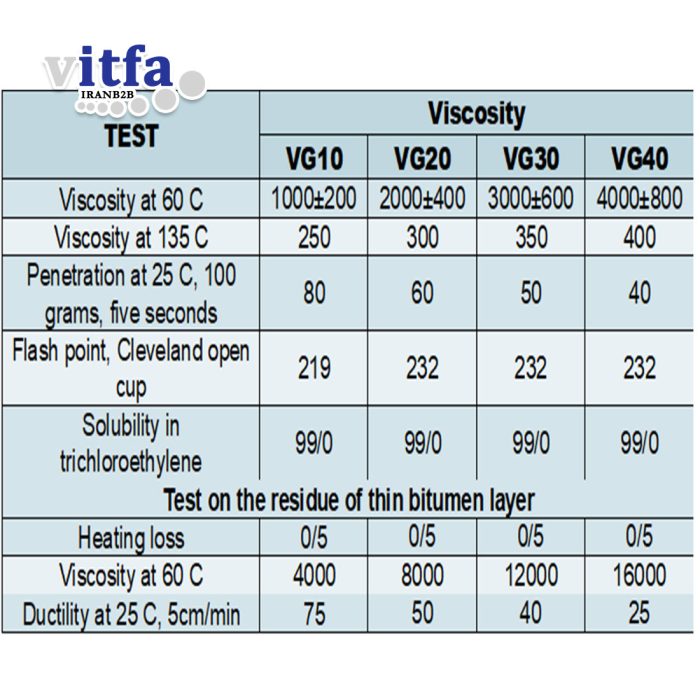

Analysis of VG bitumen:

TEST Viscosity
VG10 VG20 VG30 VG40
Viscosity at 60 C 1000±200 2000±400 3000±600 4000±800
Viscosity at 135 C 250 300 350 400
Penetration at 25 C, 100 grams, five seconds 80 60 50 40
Flash point, Cleveland open cup 219 232 232 232
Solubility in trichloroethylene 99/0 99/0 99/0 99/0
Test on the residue of thin bitumen layer
Heating loss 0/5 0/5 0/5 0/5
Viscosity at 60 C 4000 8000 12000 16000
Ductility at 25 C, 5cm/min 75 50 40 25

Cutback Iran Bitumen

This is a type of bitumen that has been liquefied by adding a solvent, such as kerosene or gasoline.

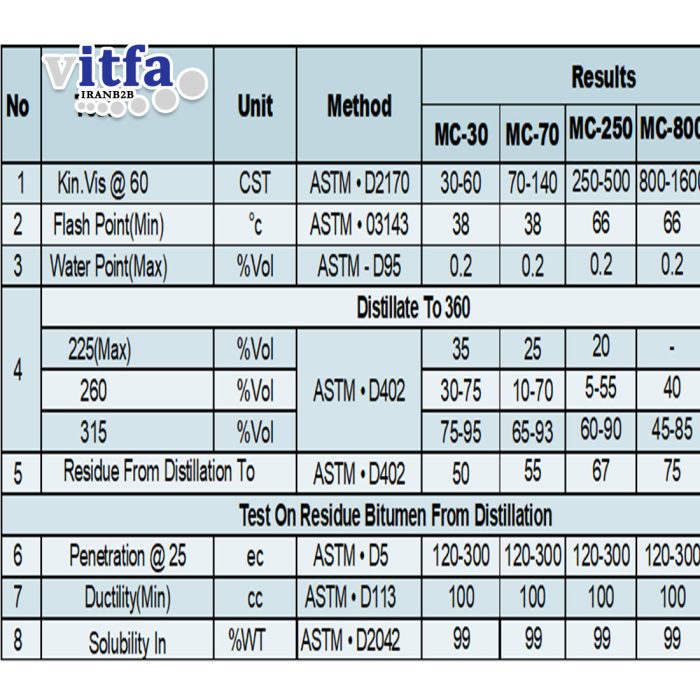

Analysis of Cutback bitumen:

No Test Unit Method Results
MC-30 MC-70 MC-250 MC-800 MC-3000
1 Kin.Vis @ 60 CST ASTM • D2170 30-60 70-140 250-500 800-1600 3000-6000
2 Flash Point(Min) °c ASTM • 03143 38 38 66 66 66
3 Water Point(Max) %Vol ASTM – D95 0.2 0.2 0.2 0.2 0.2
4 Distillate To 360
225(Max) %Vol ASTM • D402 35 25 20
260 %Vol 30-75 10-70 5-55 40 15
315 %Vol 75-95 65-93 60-90 45-85 15-75
5 Residue From Distillation To 360(Min) ASTM • D402 50 55 67 75 80
Test On Residue Bitumen From Distillation
6 Penetration @ 25 ec ASTM • D5 120-300 120-300 120-300 120-300 120-300
7 Ductility(Min) cc ASTM • D113 100 100 100 100 100
8 Solubility In
Trichloroethylene(Min)
%WT ASTM • D2042 99 99 99 99 99
