Copper Busbar

What is important in the Copper Busbar is high electrical and thermal conductivity, good mechanical properties, high corrosion resistance, fatigue and creep and high formability.

  Ask a Question

Description

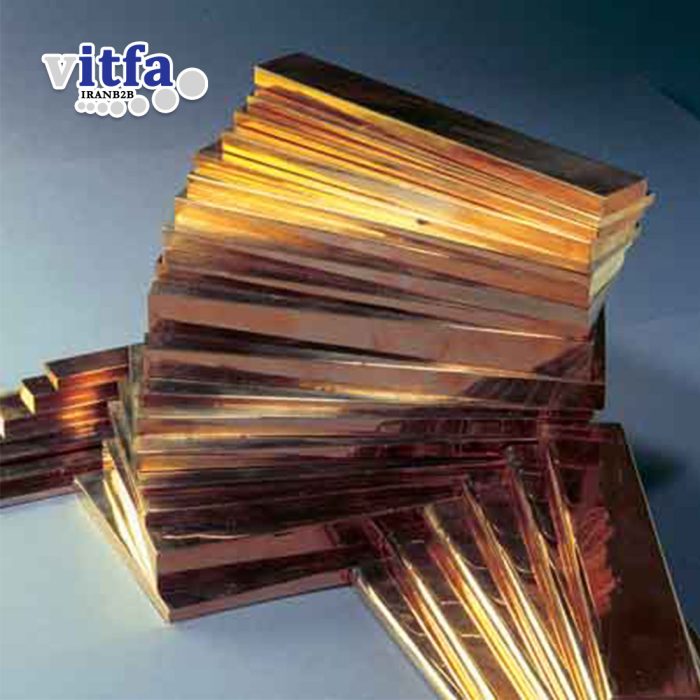

Copper Busbar

What is important in the Copper Busbar is high electrical and thermal conductivity, good mechanical properties, high corrosion resistance, fatigue and creep and high formability. Also, Copper busbars are the best option to meet these requirements.

Copper busbars are used to transmit electrical current and power distribution and are widely used in power boards. Since the flow through the busbar is high, the electrical conductivity of the product is a priority.

Copper molds with a rectangular section in both flat and rounded edges.

Copper Busbar are going to deliver in different sizes. The range of production dimensions is as follows:

Dimensions range from 2 x 20 to 125 x 2 x 10 meters long. As well as, Common dimensions for busbar are:
Tin-plated copper bushings increase corrosion resistance and increase the efficiency of joints.

**Other sections according to customer’s request**

**Please check out our website to witnessing the other similar products from the same company, click here Please**

Additional information

Alloy

TPC

Denomination

Tough Pitch Copper

ISO

Cu-ETP

ASTM USA

C11000

DIN Germany

E Cu 58

JIS Japan

C1100

BS England

C 101

Copper (Minimum)

99.90

Phosphorus

0.004 MAX
