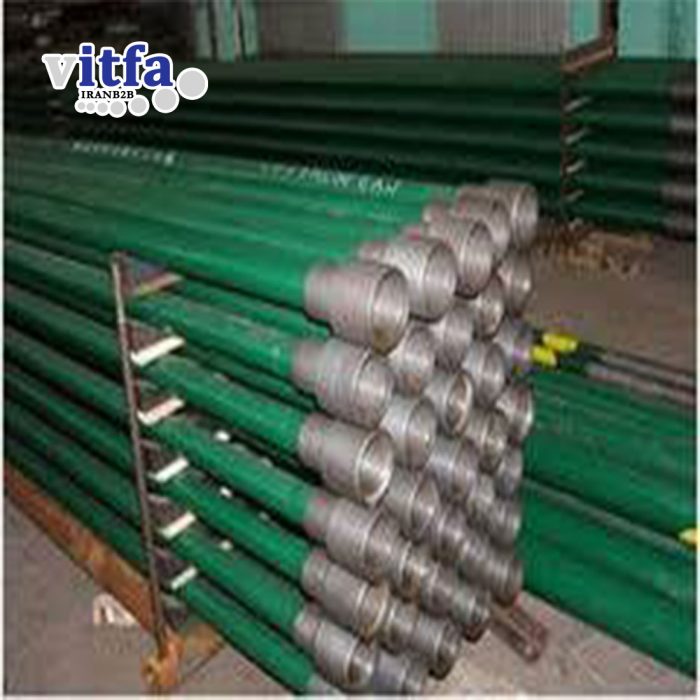

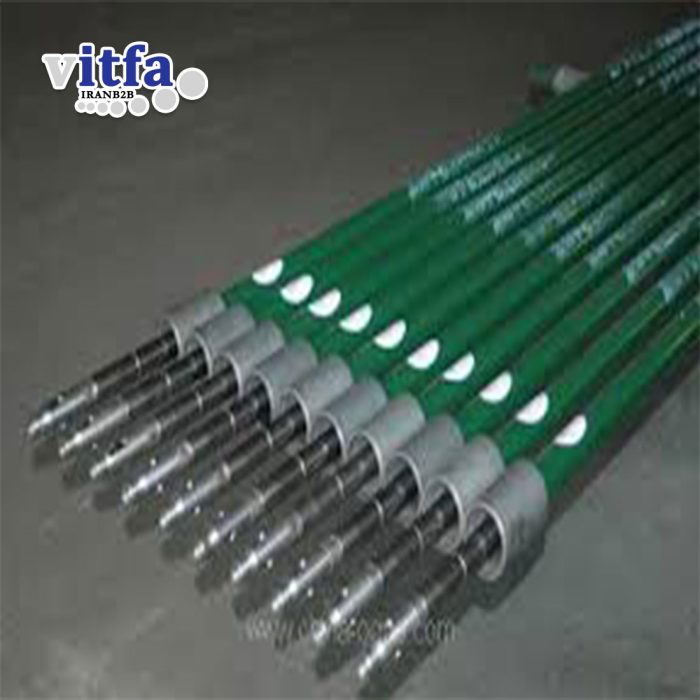

API 11AX Oilfield Subsuperficial Sucker Rod Pump
Subsuperficial Sucker Rod Pump
Major products: Tubing Pump Series, Rod Pump Series, Anti-sand Pump Series. Sizes of the pumps are of Φ32-Φ120, with displacement mm of 1.8-8m.
Technical Performance & Characteristics
1. The pump barrel is made of high-quality special tubes, and the internal surface is hardened through chrome or nickel-phosphorus plating, resulting high strength, rigidness and corrosion-resistant performance.
2. The surface of the plunger is subject to build-up welding with nickel-based alloy powder, thus the corrosion-resistant performance is enhanced.
3. The valve ball and seat are made of high carbon chromium stainless steel, tungsten carbide, titanium carbide or other materials, thus its service life is extended.
4. High pumping efficiency and long inspection cycle.
5. Compact structure and easy installation and maintenance.
Major specifications and technical Data:
Type Major technical data
Diameter(mm) Barrel Length (m) Stroke Range (m) Length of Extension Pub Joint(m) Thread for Tubing(in) Connecting sucker rod
Rod pumps 31.8 2.1 1.5-6 0.3 0.6 0.9 2 3/8 CYG16
2,4
2,7
3
3,3
3,6
38.1 3,9 2 7/8 CYG19
44.45 4,2 2 7/8 CYG19
Tubing pump 31.8 4,5 1.5-7.8 0.3 0.6 0.9 2 3/8 CYG16
38.1 4,8 2 7/8 CYG16
44.45 5,7 2 7/8 CYG16
57.15 6 2 7/8 CYG19
69.85 6,6 2 7/8 3 1/2 CYG22
82.55 7,3 3 1/2 CYG25
95.25 9,1 3 1/2 CYG25
