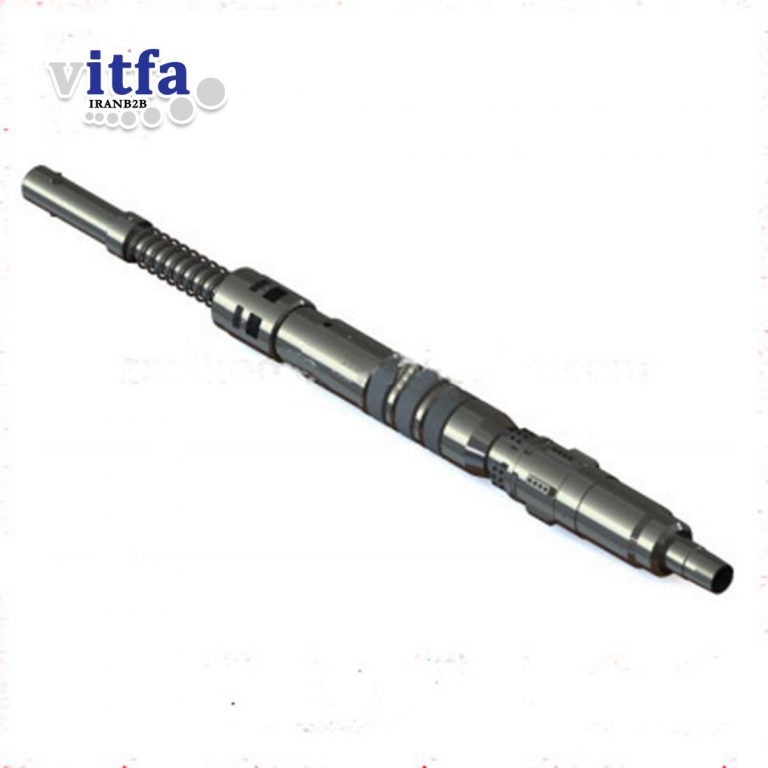

The SRB retrievable bridge plug runs and sets by a wireline tools and hydraulic setting tools and can
retrieve by either tubing or wire line after completion.The Plug is used for wire line or coiled tubing including zone isolation,acidizing,formation fracturing and other construction.
1.The Bridge Plug can be set on wireline tool or coiled tubing setting tool. lInternal ratchet lock ring maintain setting force.
2.Upper and lower annulus can withstand high pressure 10,000PSI[70MPa] l
3.Anchor joint play a balancing role in release,prevent releasing in advance. lSafety joint is an emergency release device.
4.Running fishing tool,directly lifting unset.
O.D. Length Operating pressure differential Operating Releasing load
mm mm MPa temperature kN
114 990 50 120 40-60
148 1080 50 120 60-80
210 1260 35 120 70-90
